Mingda MD-600 PRO 3D Printer

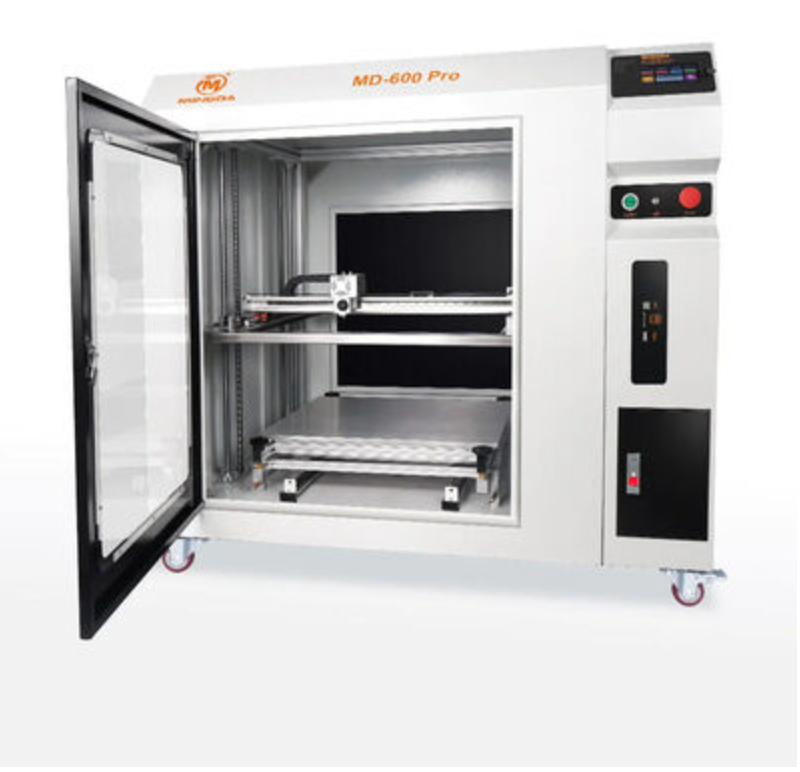

MD-600 Pro – Industrial Large-Format 3D Printer

The MD-600 Pro is a large-format, user-friendly 3D printer specifically designed for industrial applications using engineering-grade materials. Its sleek, space-conscious design makes it ideal for producing high-quality parts in any environment, from offices to factory floors. Whether you are making factory molds, prototypes, or end-use parts, the MD-600 Pro is a durable, cost-effective solution for producing large, high-quality 3D prints.

The MD-600 Pro offers a build volume ten times larger than standard desktop 3D printers (600 × 600 × 600 mm). Featuring a fully enclosed print chamber and a temperature-controlled filament compartment, along with fast heating performance, the MD-600 Pro delivers exceptional results with advanced materials.

Like its predecessor, the Mingda MD-400D, the MD-600 Pro is suitable for:

• Complex prototype production and finely detailed models

• Medical parts

• Aerospace components

• Automotive molds and parts

• Sculptures and bust designs

Extruder Options

The MD-600 Pro comes with two interchangeable hotends:

• Normal Hotend: suitable for temperatures up to 250°C

• High-Temperature (HT) Hotend: reaches up to 350°C

These hotends can be easily swapped depending on the filament material used for your 3D model.

Key Features

Fully Enclosed Large Print Area

• Metal frame with acrylic cover ensures stable printing temperatures for ABS and other advanced materials.

• Allows monitoring of the printing process and enables single-shot printing of large models.

Baby Step Function

• Adjusts the first layer height with a precision of 0.01 mm, ensuring a stable foundation and high-quality prints for the entire model.

Removable Flexible PEI Platform

• Ensures proper adhesion during printing without warping.

• Prints can be easily removed from the flexible platform.

• Rapid heating and strong adhesion for consistent results.

Automatic Leveling System

• 25-point automatic leveling improves print efficiency and quality.

• Precise nozzle calibration allows high-resolution printing of prototypes.

High-Temperature Extruder

• Two hotend options (250°C and 350°C)

• HT extruder supports advanced engineering filaments

UPS (Uninterruptible Power Supply)

• Built-in UPS pauses printing during power loss and resumes automatically once power is restored.

Filament Storage Compartment

• Filament spool is kept isolated from the environment during printing.

• Extra storage for spare filament is provided.

Filament Compatibility

MD-600 Pro supports a wide range of materials for DIY projects and professional production:

• PLA, ABS, ASA, TPU, PETG, PETG-ESD, PET-GF, PET-CF, PA12-CF, HtPA-GF, HtPA-CF

Technical Specifications

PRINTING / DEVICE

• Printing Technology: FDM

• Layer Thickness: 0.05–0.3 mm

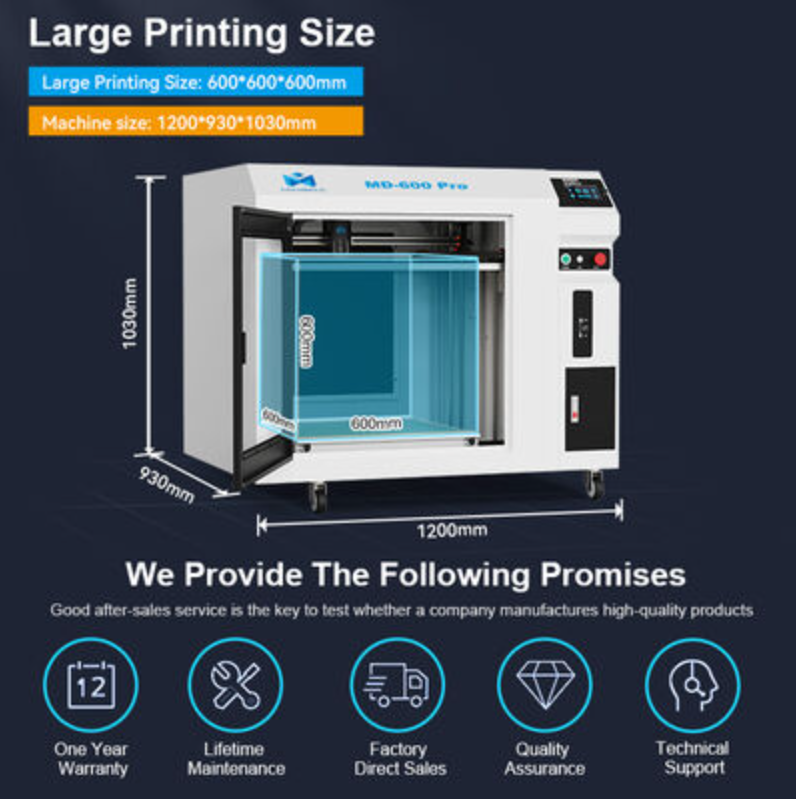

• Build Volume: 600 × 600 × 600 mm

• Nozzle Diameter: 0.4 mm

• Extruder Temperature: ≤ 350°C

• Printing Speed: 60–100 mm/s (max 200 mm/s)

• XY Positioning Accuracy: 0.015 mm

• Z Positioning Accuracy: 0.0015625 mm

• Precision: ±0.1 mm

• Build Platform: 10 mm thick aluminum

• Power: 1200 W

• Input Voltage: 100–240 V, 50/60 Hz

• Connectivity: USB, SD Card, U Disk

• Heated Bed Temperature: ≤ 110°C

SOFTWARE / COMMUNICATION

• Supported Software: Cura, Repetier-Host, Simplify3D

• Operating Systems: Windows (7, 8, 10), macOS

• Input File Formats: STL, OBJ, G-code

OTHER FEATURES

• Filament Run-Out Detection: printing automatically pauses

• UPS: stores print data during power loss

• Broken Filament Detection: supported

• Auto Shutdown: automatically powers off after print completion

• Lead Time: 2 months
